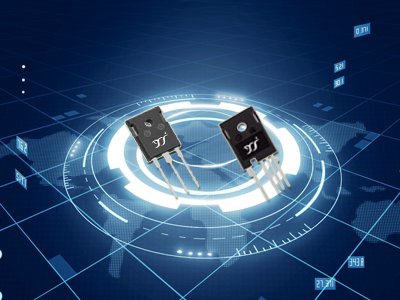

IGBT Discrete For PTC of Auto Industry
IGBT Discrete For PTC of Auto Industry Back
 PDF

Introduction 1.SuperTO-220standardpackaging
2.VCES=1200V，IC=40A~80A；
3.TheproductismainlyusedinPTC application;
4.ThehighfrequencyIGBTmodulesandothermarket mainstream product sarecompletely pintopin alternatives；
5.EnvironmentallyfriendlycomplyingwithRoHSstandards；
Features 1.Trench-FSstructurehasbetterbalanceofblockingcapacityandLowsaturationvoltage;
2.Maximum junctiontemperatureTjmax=175℃;
3.HighefficiencycharacteristicswithverylowVce(sat)andslowturn-offcharacteristics,
suitableforPTC applications;；
SPECIFICATION

DGR40N120ATL0AQ DGR80N120ATL1BQ DGS40N120ATL0AQ DGS80N120ATL1BQ
